Scanning electron microscopy (SEM) uses a focused beam of electrons to image microscopic details of your material in high resolution.
We're here to help! If you're facing challenges such as material defects, surface contamination, or issues with microstructural analysis, Scanning Electron Microscopy (SEM) testing might be the solution you need. SEM testing can provide detailed images and analysis of material surfaces, helping you identify and understand defects, contamination, and microstructural characteristics.
If you're experiencing any of these issues or have other concerns, share them with us, and let's explore how SEM testing can provide valuable insights and solutions tailored to your needs.

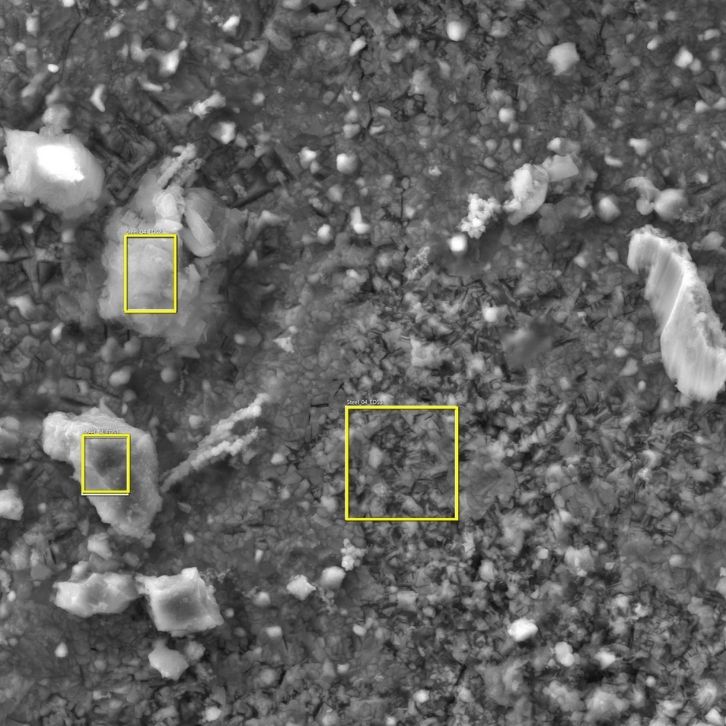

Our SEM-EDS process captures intricate details for failure analysis and produces stunning imagery of the sub-microscopic world, revealing what often goes unnoticed.
This versatile technique is applies to a wide range of materials, including metals, ceramics, plastics, powders, coated surfaces, and even dry food products. Certain biological materials may also be suitable, with additional preparation and safety considerations.
The experienced team at Hayes Metals will guide you through the process, advising on sample requirements, cutting, sectioning, and mounting samples for optimal results.
We provide a comprehensive report with detailed image-by-image interpretation.
Plus, clients can arrange to accompany our staff during the SEM operation for a firsthand experience.
Utilise SEM analysis and imagery for:
- Failure analysis
- Forensic investigation
- Product development
- Identification of contaminating debris
- Detection of fraudulent or counterfeit products
- Educational materials
- Promotional and advertising images
Choose Hayes Metals for precise, insightful, and visually compelling analysis that drives your projects forward.
Are you ready to see your materials in a whole new light? At Hayes, we offer state-of-the-art Scanning Electron Microscopy (SEM) testing that reveals the intricate details of your samples with unparalleled precision.
Why choose SEM testing?
Unmatched resolution: SEM technology provides high-resolution images that capture the finest details, down to the nanometre scale. Whether you're in materials science or engineering, our SEM testing can uncover the hidden structures and compositions of your samples.
Comprehensive analysis: Beyond just imaging, our SEM testing includes elemental analysis through Energy Dispersive X-ray Spectroscopy (EDS). This allows you to not only see the morphology of your samples but also understand their chemical composition.
Expertise you can trust: Our team of experienced scientists and technicians are dedicated to delivering accurate and reliable results. With years of expertise in SEM technology, we ensure that your samples are handled with the utmost care and precision.
Customised solutions: We understand that every project is unique. That's why we offer tailored SEM testing solutions to meet your specific needs. From sample preparation to data interpretation, we work closely with you to achieve your research and development goals.
Fast turnaround: Time is of the essence in research and development. At Hayes, we prioritise efficiency without compromising on quality. Our streamlined processes ensure that you receive your results promptly, helping you stay ahead in your field.
Applications of SEM Testing
Materials science: Analyse the microstructure of metals, polymers, ceramics, and composites.
Electronics: Investigate the surface morphology and failure analysis of electronic components.
Forensics: Uncover critical evidence with detailed imaging and elemental analysis.
Experience the Hayes Difference
At Hayes, we are committed to pushing the boundaries of scientific discovery. Our SEM testing services provide you with the insights you need to innovate and excel. Partner with us and unlock the full potential of your research.
Our laboratory has the expertise and flexibility to adopt new test methodologies when required. So, if you require a test that is outside our current scope, give us a call; we’re more than happy to discuss your requirements.
